Solar Collector Set 2X20 Tubes, Stainless Steel, Thunder (without tank)

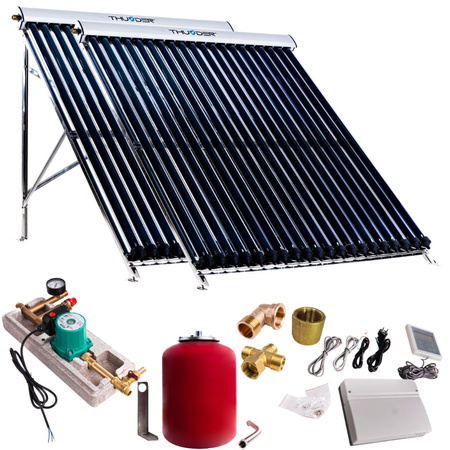

SET INCLUDES

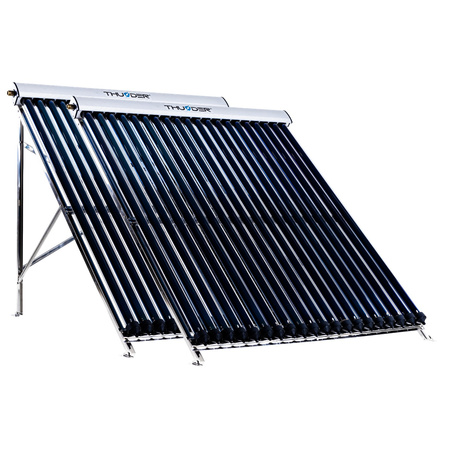

Vacuum Tube Collector - 2 pieces

Technical data of a single collector:

• Width — 163 cm
• Length — 196 cm
• Number of vacuum tubes —  20 pcs
• Vacuum tube size — 58 mm / 1800 mm
• Vacuum tube material — borosilicate glass
• Heat-Pipe application —  YES
• Heat exchanger — copper
• Frame — stainless steel
• Connections – 1” GZ
• Angle of inclination — 45°

Pump Group - 1 piece

• Circulation pump (WILO)
• Check valve
• Pressure gauge
• Safety valve
• Ball valve
• EPP insulating coating

Solar Controller TK-SC8 - 1 piece

• Holiday function
• Control of the water circulation pump temperature
• Antibacterial function
• Manual control of the water circulation pump
• Economy mode
• Memory protection
• Automatic water tank regulation
• Protection against collector freezing

Expansion Tank - 1 piece

• Capacity 18L
• Material – Carbon steel
• Working pressure – 10 bar
• Additionally, cable and mounting bracket

Collector Connector Set

• Elbow connector – 1 piece
• Cross connector – 1 piece
• 1'' sleeve - 1 piece

RENEWABLE ENERGY = UNLIMITED RESOURCES

• A solar system is an ecological and efficient heating solution based on the use of thermal energy provided by sunlight. It is an alternative to conventional systems based on fossil fuels. These systems use solar collectors to convert solar energy into heat, which can be used to heat domestic water. Solar energy is a renewable source, which means its resources are unlimited and do not produce greenhouse gas emissions.
• Solar collectors can provide up to 60% of the annual demand for hot water, and in the summer months they can even meet 90-100% of monthly needs. As a result, using solar energy can significantly reduce the use of fossil fuels for heating purposes.
