Stainless Steel Vacuum Tube Solar Collector Set 30 Tubes Thunder (No Tank)

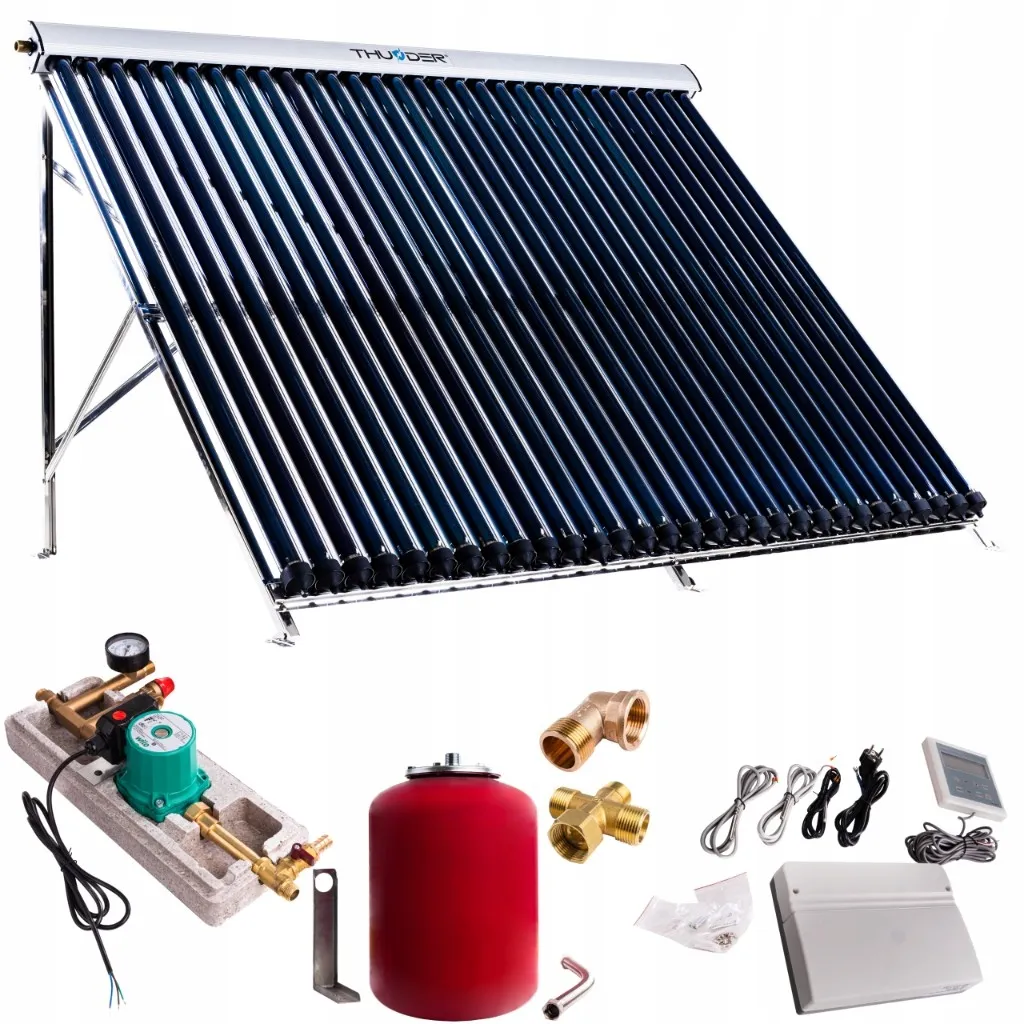

SET INCLUDES

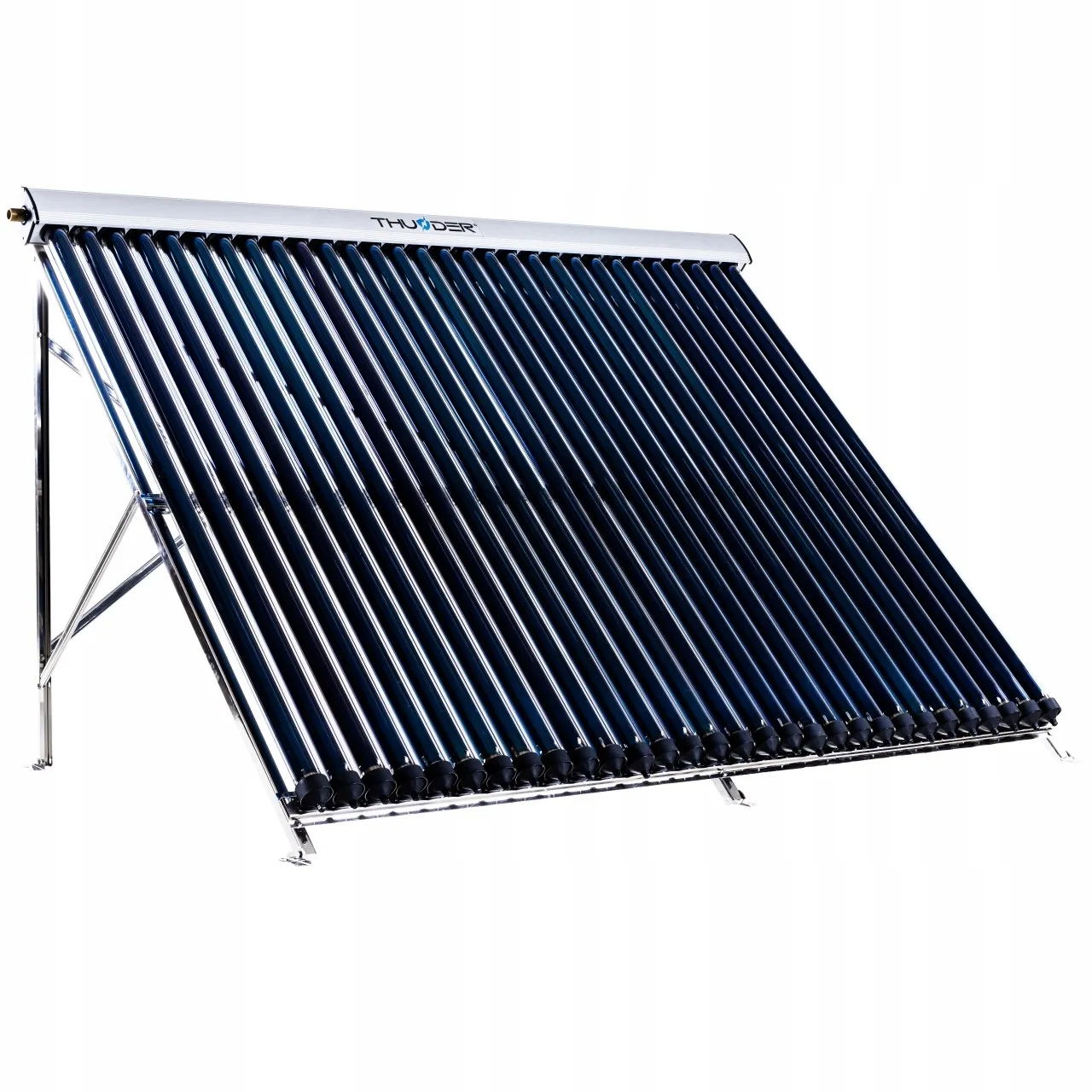

Vacuum Tube Collector - 1 piece

Technical data of a single collector:

• Width — 238 cm
• Length — 196 cm
• Number of vacuum tubes —  30 pcs
• Vacuum tube size — 58 mm /1800 mm
• Vacuum tube material — borosilicate glass
• Heat-Pipe application —  YES
• Heat exchanger — copper
• Frame — stainless steel
• Connections – 1” GZ
• Angle of inclination — 45°

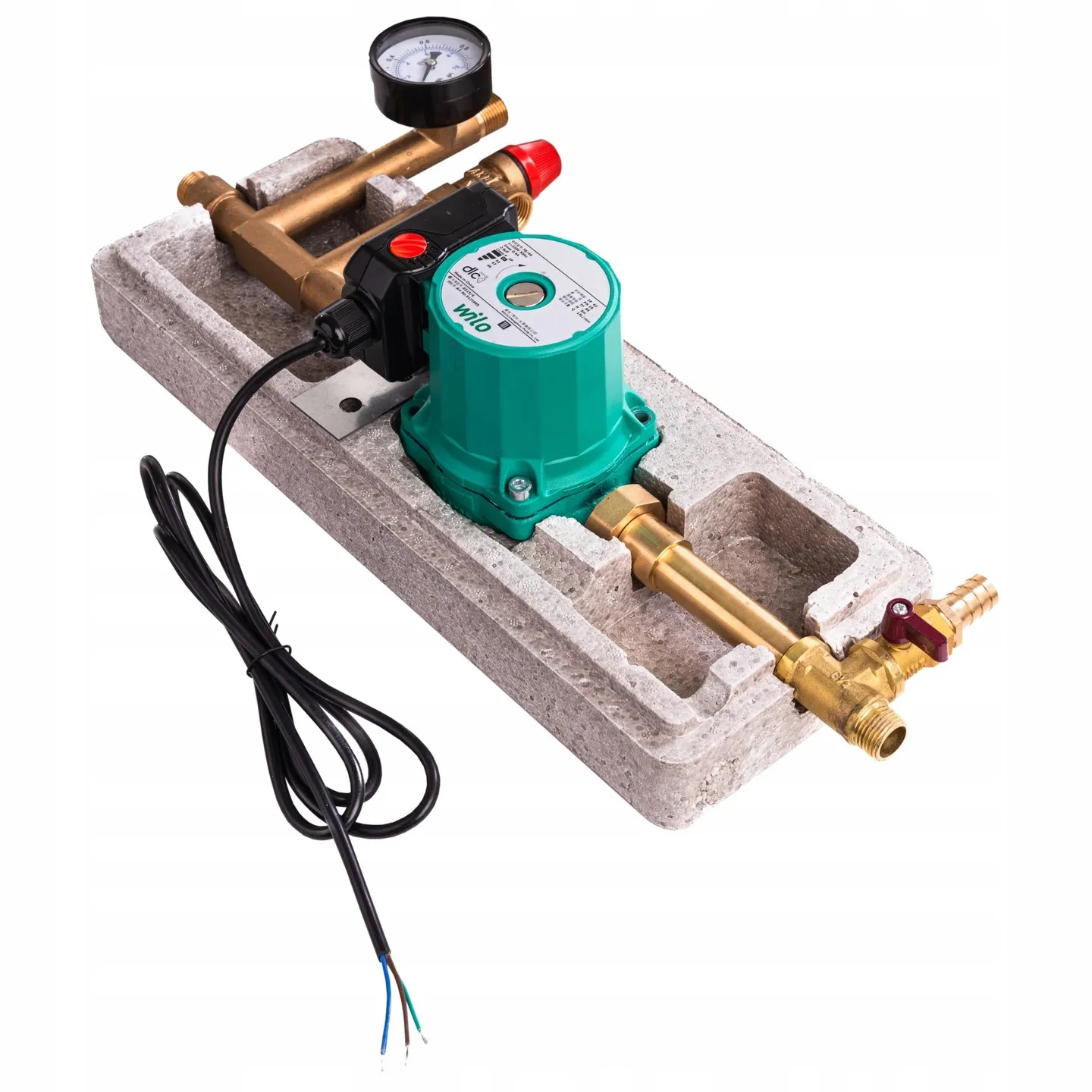

Pump Group - 1 piece

• Circulation pump (WILO)
• Check valve
• Pressure gauge
• Safety valve
• Ball valve
• EPP insulating coating

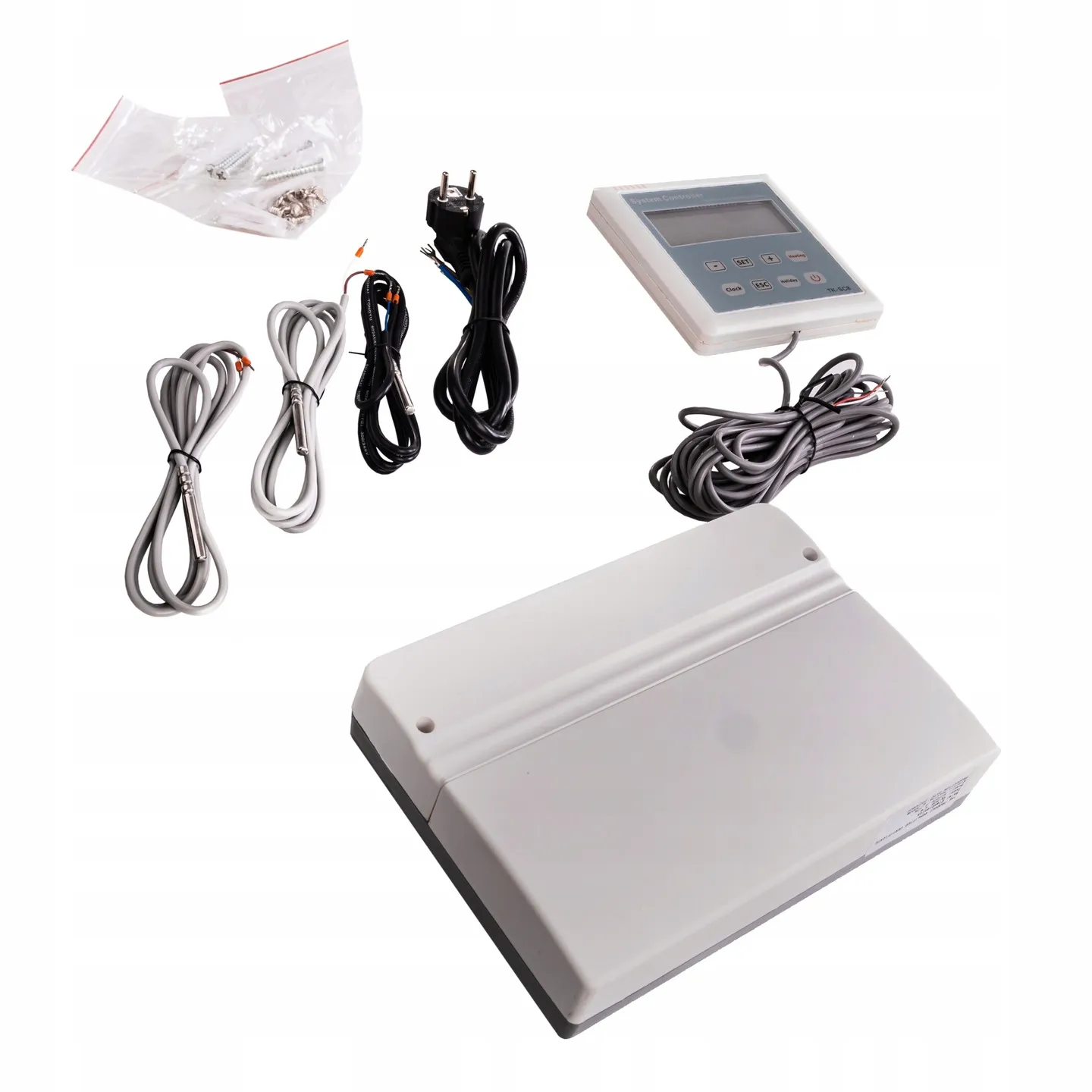

Solar Controller TK-SC8 - 1 piece

• Holiday function
• Control of water circulation pump temperature
• Antibacterial function
• Manual control of water circulation pump
• Economy mode
• Memory protection
• Automatic water tank regulation
• Protection against collector freezing

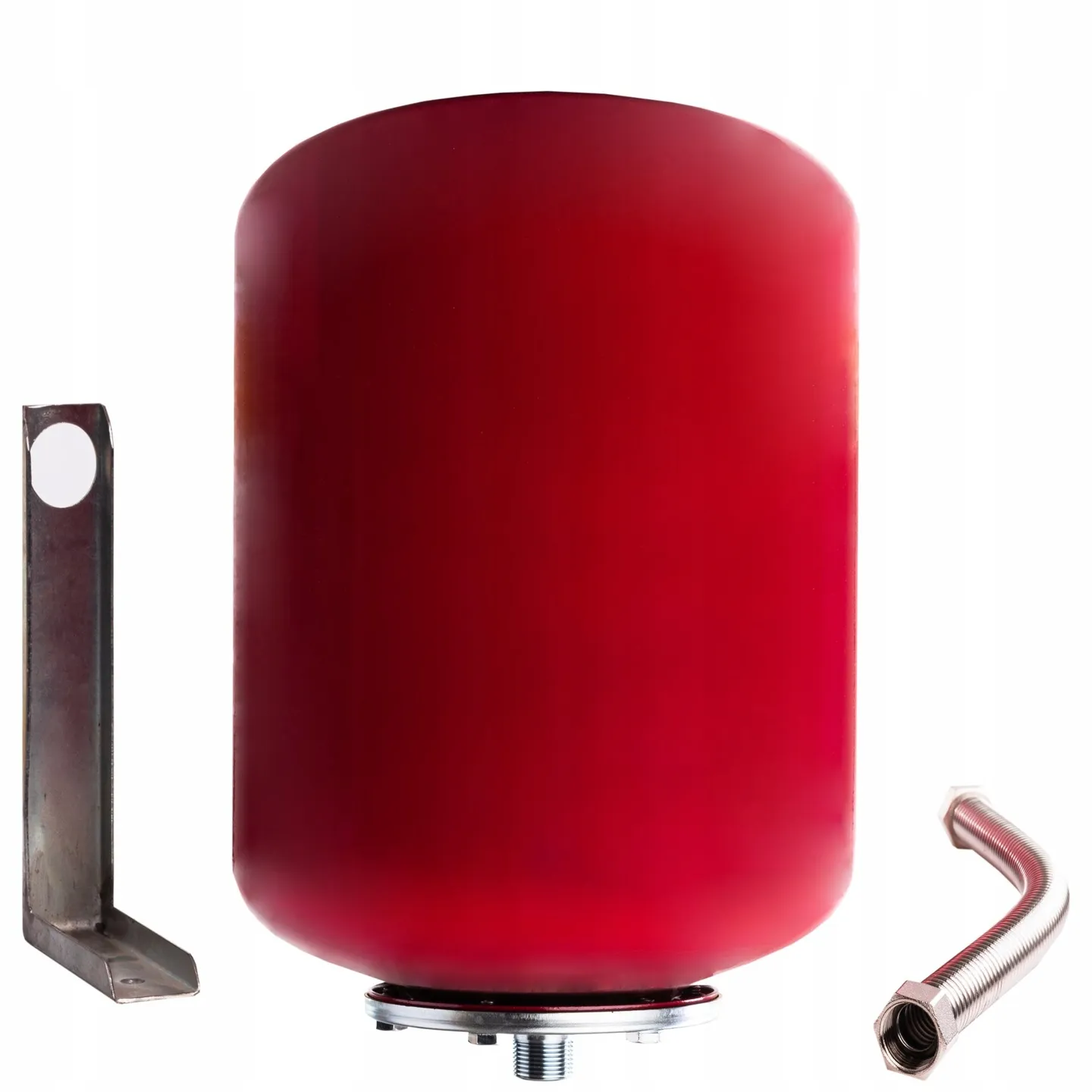

Expansion Tank - 1 piece

• Capacity 18L
• Material – Carbon steel
• Working pressure – 10 bar
• Additionally, cable and mounting bracket

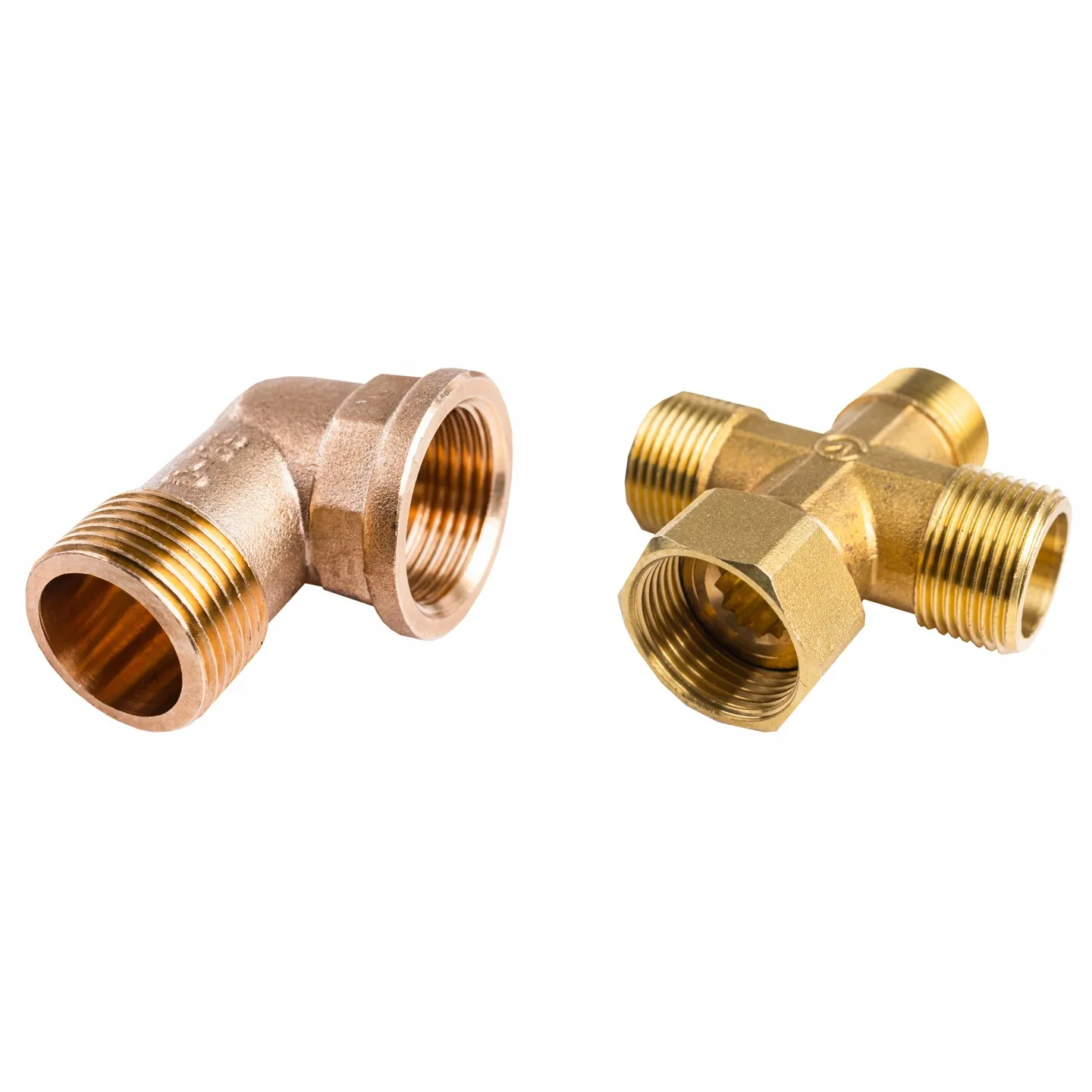

Collector Fittings Set

• Elbow fitting – 1 piece
• Cross fitting – 1 piece

RENEWABLE ENERGY = UNLIMITED RESOURCES

• A solar system is an ecological and efficient heating solution that relies on using thermal energy provided by sunlight. It is an alternative to conventional systems based on fossil fuels. These systems use solar collectors to convert solar energy into heat, which can be used to heat domestic water. Solar energy is a renewable source, meaning its resources are unlimited and do not produce greenhouse gas emissions.
• Solar collectors can provide up to 60% of the annual demand for hot water, and during the summer months, they can even meet 90-100% of monthly needs. As a result, using solar energy can significantly reduce the use of fossil fuels for heating purposes.
