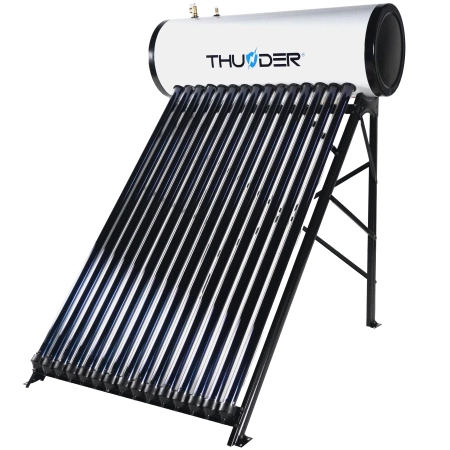

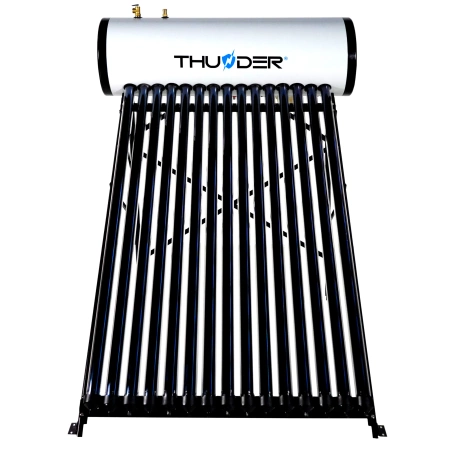

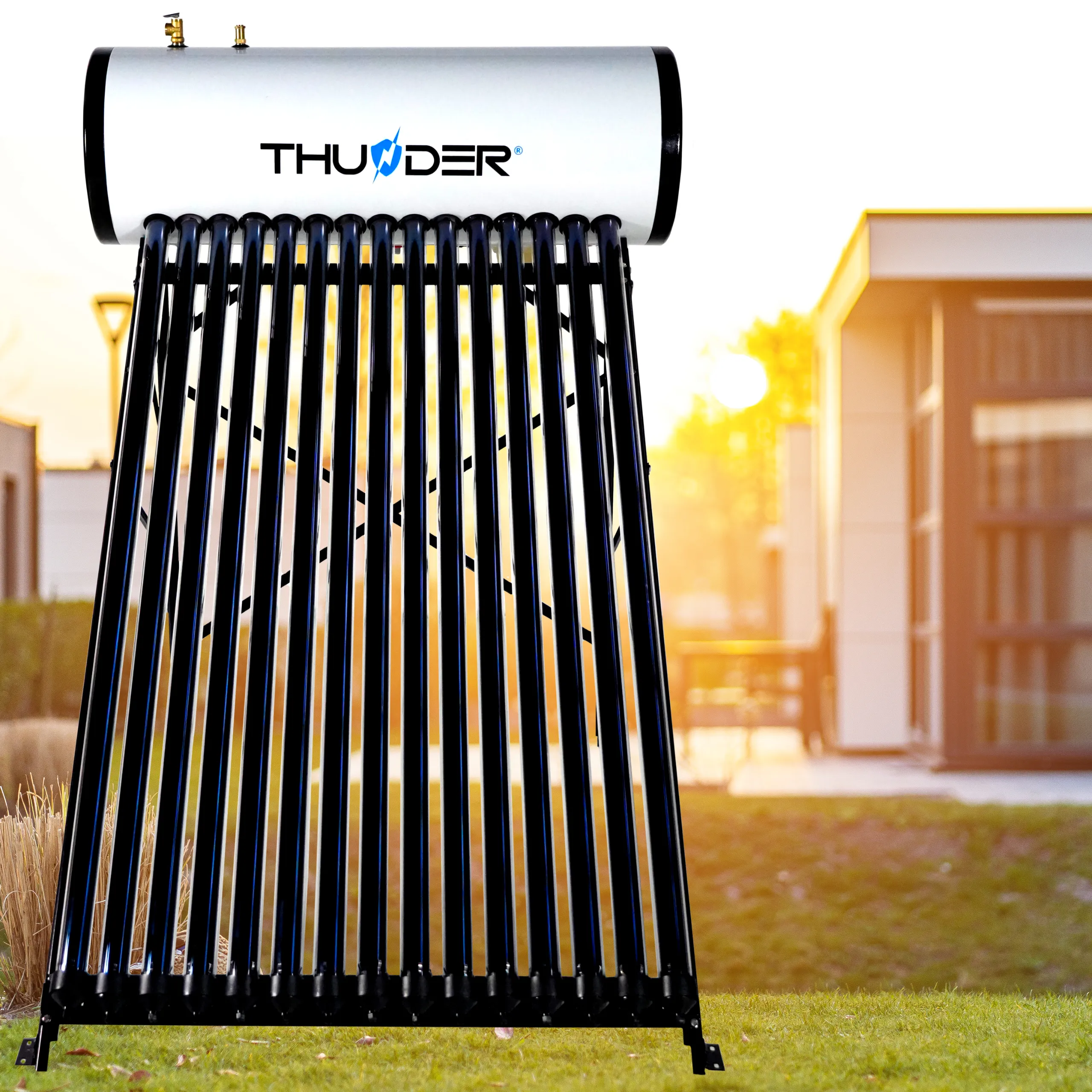

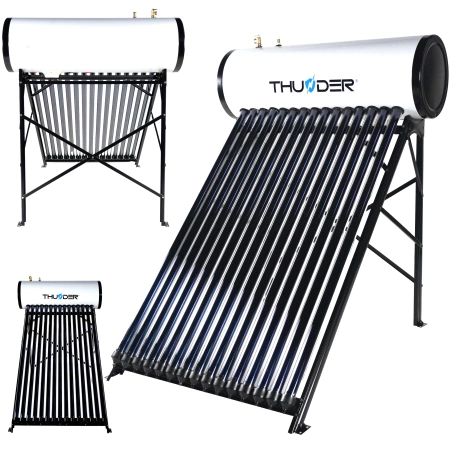

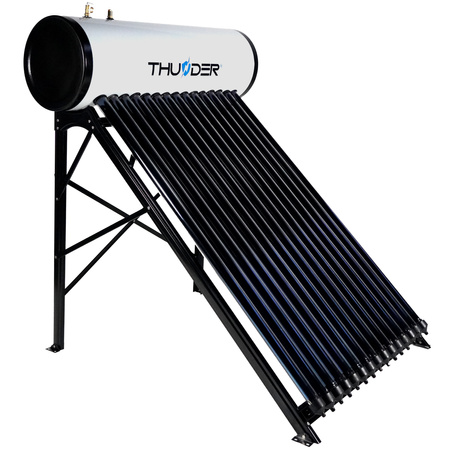

Pressure collector with THUNDER 150 L BLACK tank

Pressure collector with THUNDER 150 L BLACK tank

MANUFACTURER'S CODEKSC-150L-BLACK

THUNDER brand pressurized solar collectors – make use of solar energy!

Product Specification

Water tank capacity: 150 liters
Inner tank material: stainless steel
Outer tank material: galvanized steel

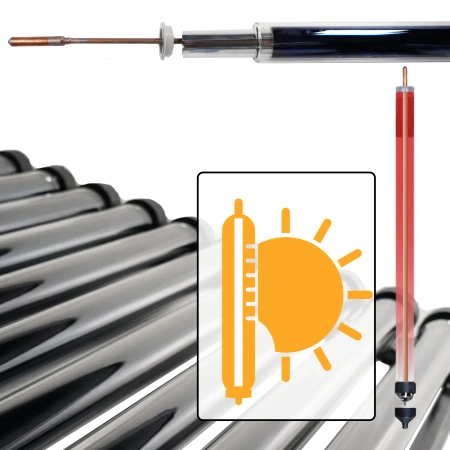

Number of vacuum tubes: 15 pcs.
Vacuum tube size: Ø58 mm × 1800 mm
Vacuum tube material: borosilicate glass
Heat-Pipe application: yes
Heat exchanger: copper
Frame: galvanized steel, powder-coated
Thermal insulation of the tank: 50 mm polyurethane foam
Efficiency: water temperature increase up to 60 °C
Hail resistance: Φ25 mm

The collector also has the SOLAR KEYMARK certificate.

Dimensions

Water tank length – 136.5 cm
Inner tank diameter – 360 mm
Outer tank diameter – 460 mm
Width – 114.5 cm
Height – 170 cm
Depth – 154 cm

Set includes:

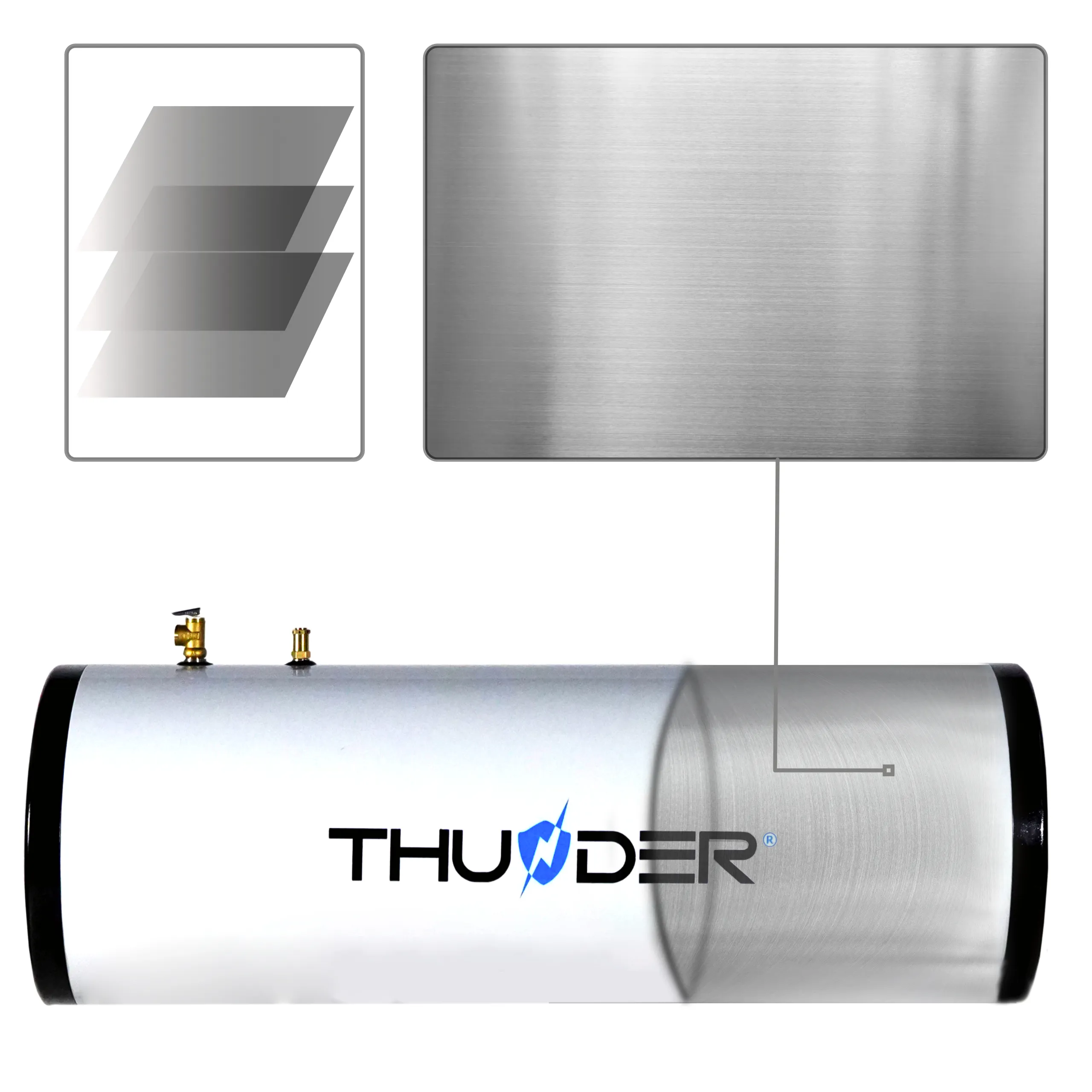

150 L stainless steel tank, insulated with polyurethane foam
Frame – ground or roof mounting

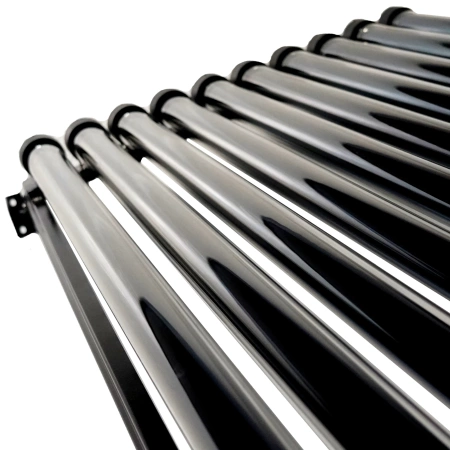

15 vacuum tubes made of borosilicate glass

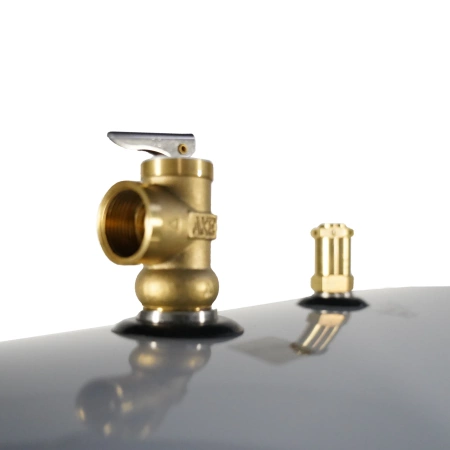

T/P valve
Safety valve
Anti-vacuum valve
Magnesium anode – built-in
Thermal conductive paste
Screws and nuts
Instruction in Polish

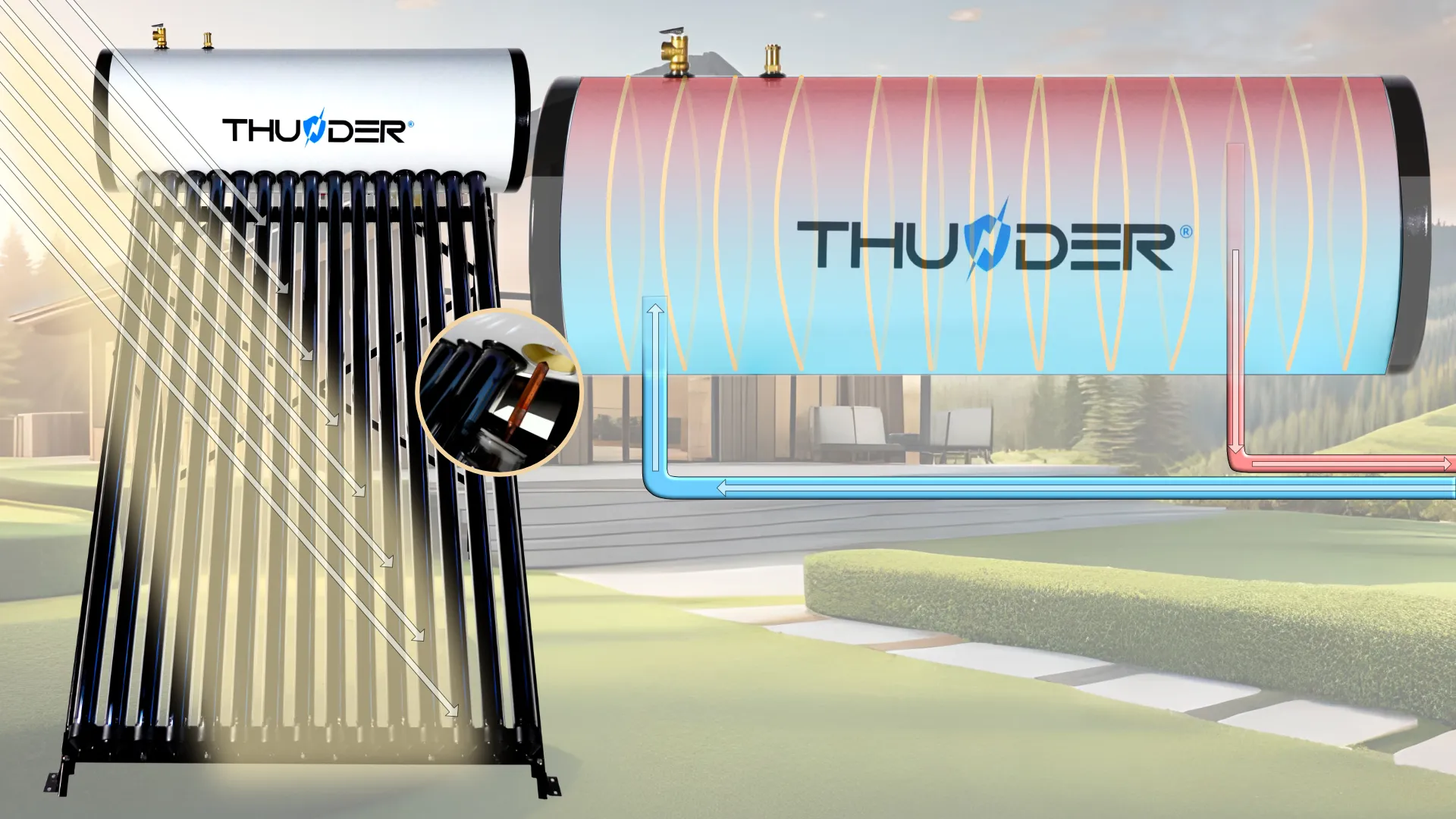

THUNDER® pressurized solar collectors – make use of solar energy!
