Flat solar collector 2.5 m² – easy installation, Thunder set

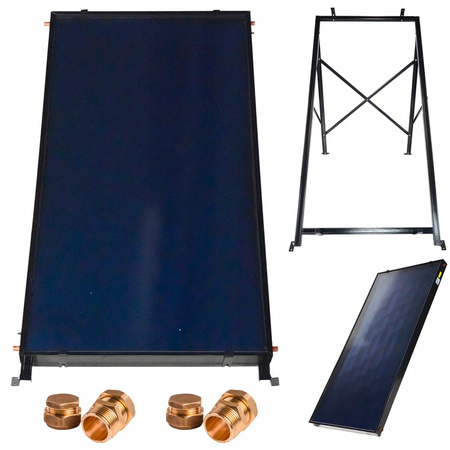

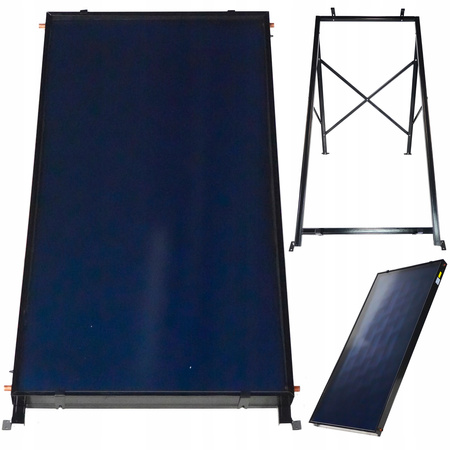

The set includes:

• Flat solar collector with an area of 2.5 m² – 1 piece
• Structure for one flat collector – 1 piece
• Clamp plugs – 2 pieces

Flat solar collector with an area of 2.5 m²

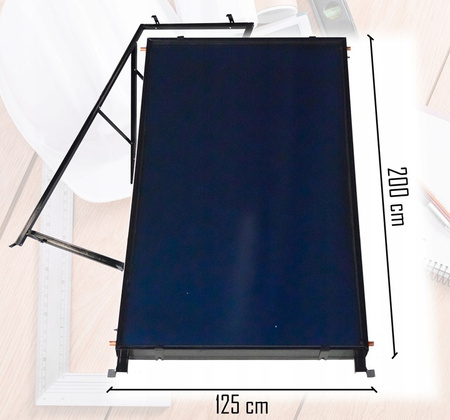

• Collector dimensions: 2000 mm × 1250 mm × 80 mm
• Absorber: Aluminum 0.4 mm with blue titanium coating
• Absorber tubes: Copper
• Absorption area: 2.37 m²
• Emissivity: 5%
• Absorber layout: Harp
• Cover material: Low-iron tempered glass
• Frame material: Black aluminum alloy
• Insulation material: Fiberglass
• Connections: 3/4"

Install a solar collector and enjoy free energy from the sun!

Do you dream of constant access to hot water but don't want to incur high costs? The solar collector is the solution you've been waiting for! By choosing the THUNDER solar collector, you are opting for a functional and cost-effective solution. Don't wait any longer – choose comfort and savings today! This is a solution that pays for itself after 2-3 years of use. It is also a way to protect the environment and take care of the future of our planet. We offer high-quality solar collectors that are durable, effective, and easy to use.

The structure is adapted for mounting two flat solar collectors with dimensions of 2000x1250x80 mm (area 2.5 m²). The frame can be installed both on the ground and on a pitched roof by removing the rear legs of the set.

The original tilt of the set is 45°.

Main features:

• Compatibility with solar panels: Our structure is specially designed for flat solar panels, ensuring a perfect fit and safe installation.
• Solid construction: Made of high-quality materials, the structure ensures strength and durability. Resistance to weather conditions is a guarantee of long-term use.
• Easy installation: Thanks to the simple design, self-installation becomes easy even for people without specialized experience. Step-by-step instructions will make the installation process easier for you.
• Energy efficiency: The structure allows for optimal positioning of the panel, which translates into maximum exposure to sunlight and efficient energy collection.
• Versatile use: Ideal for mounting on a roof or other surfaces, the structure will work in various conditions and locations.
